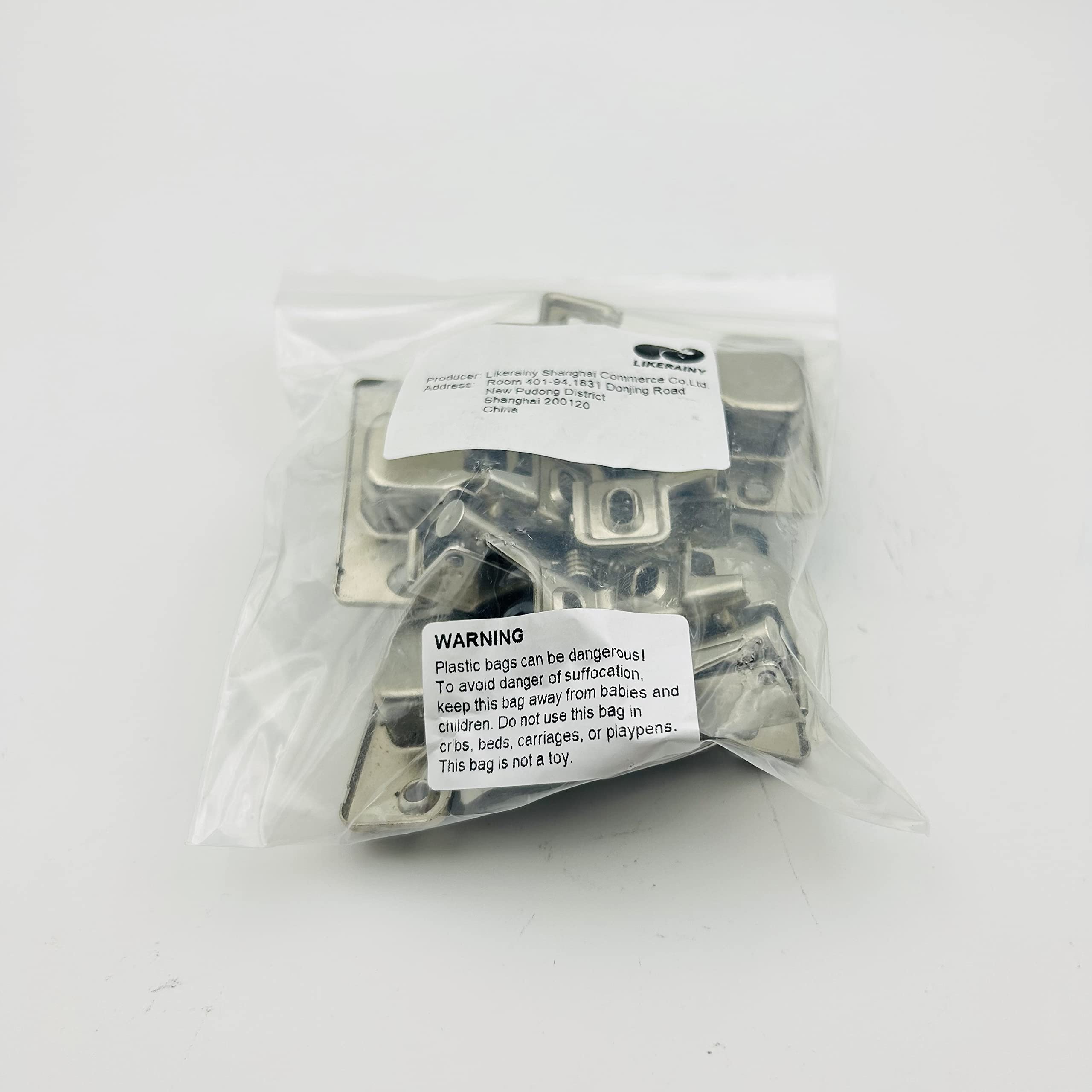

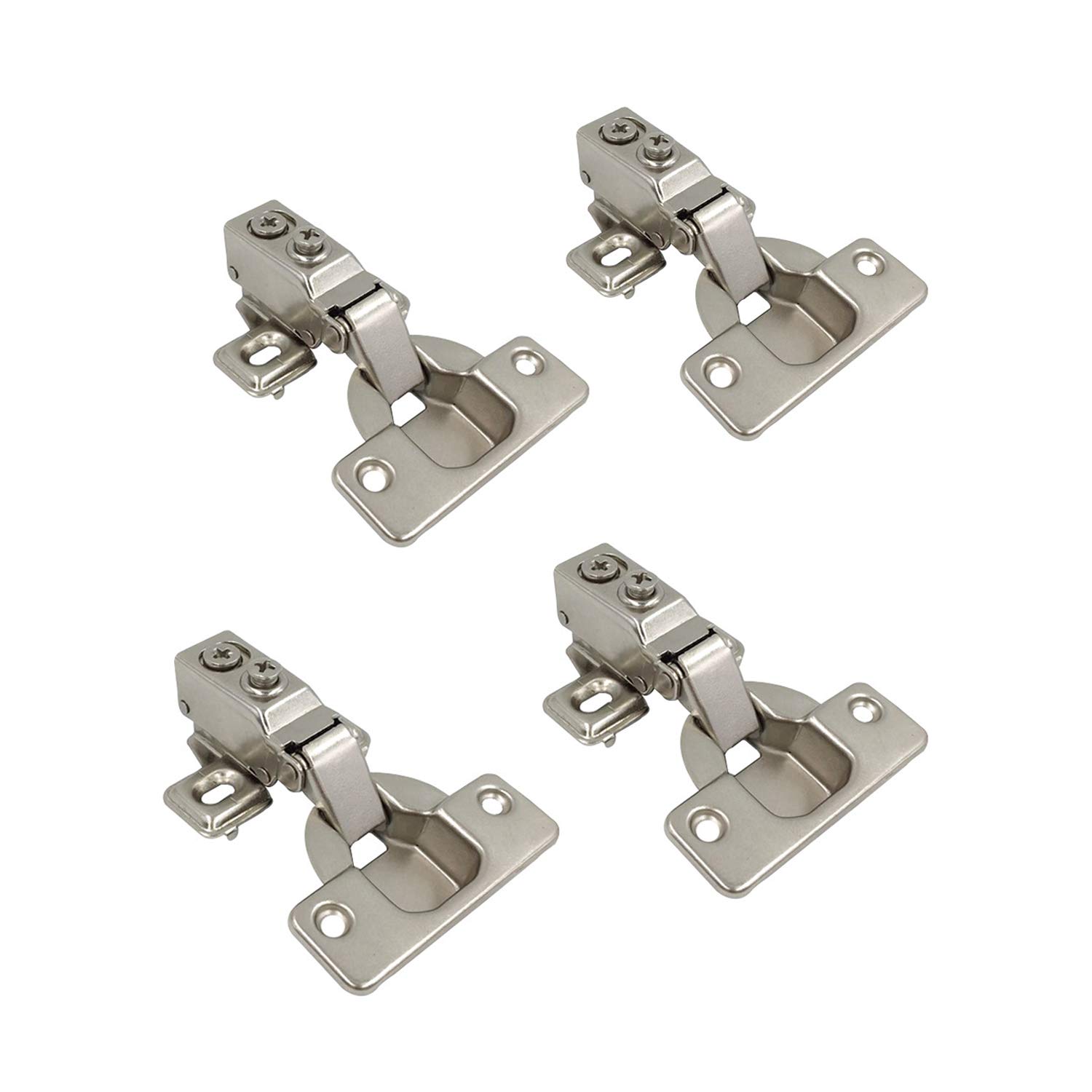

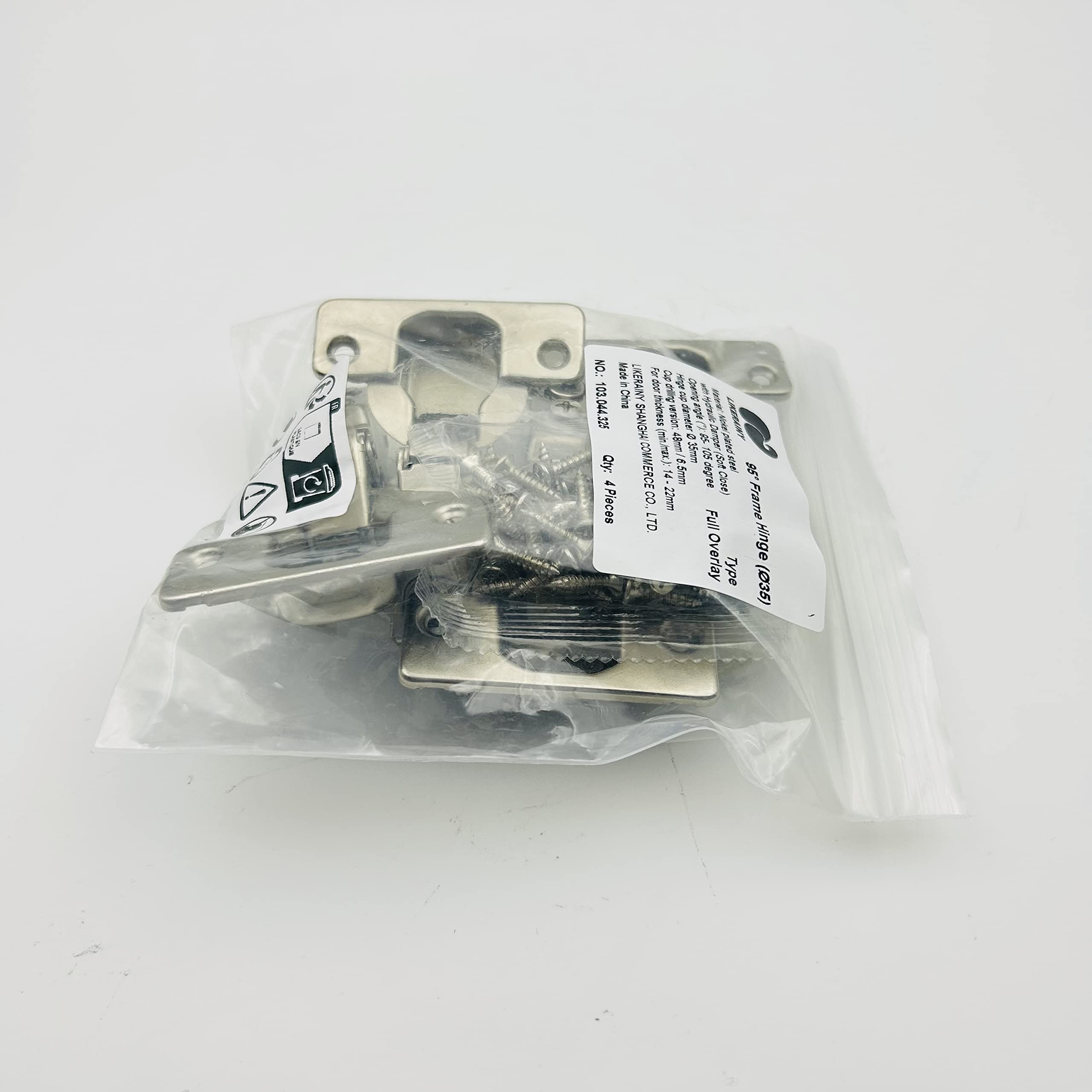

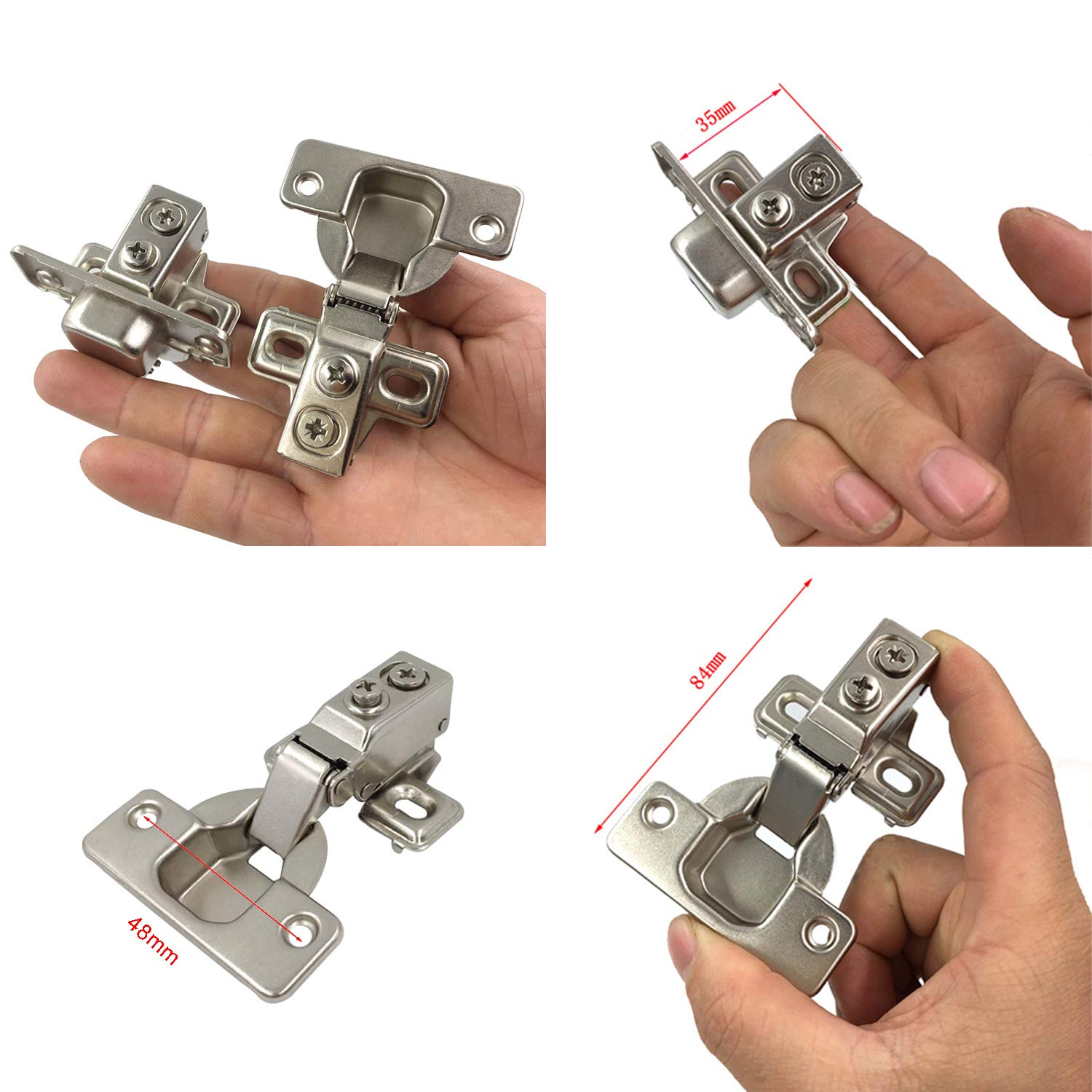

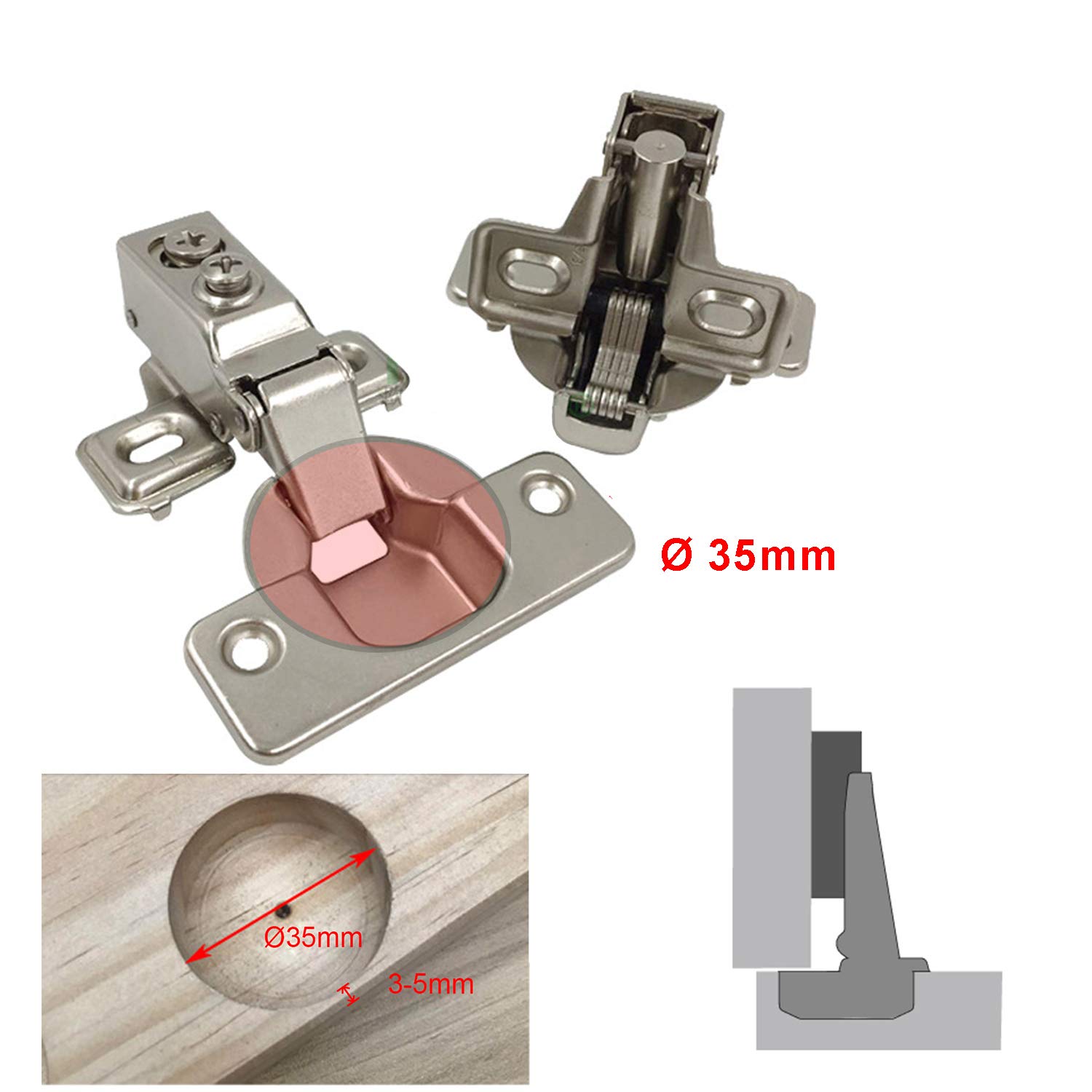

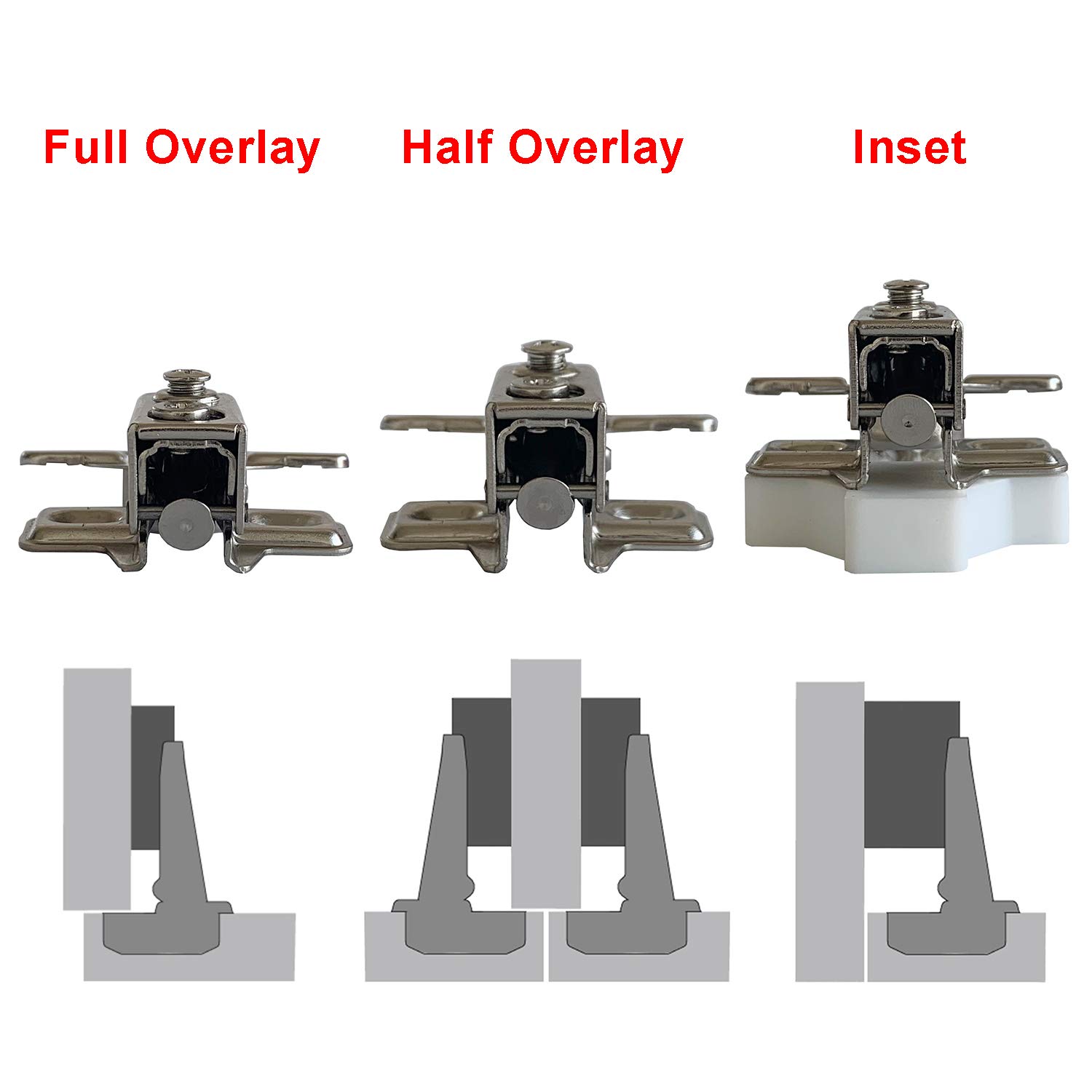

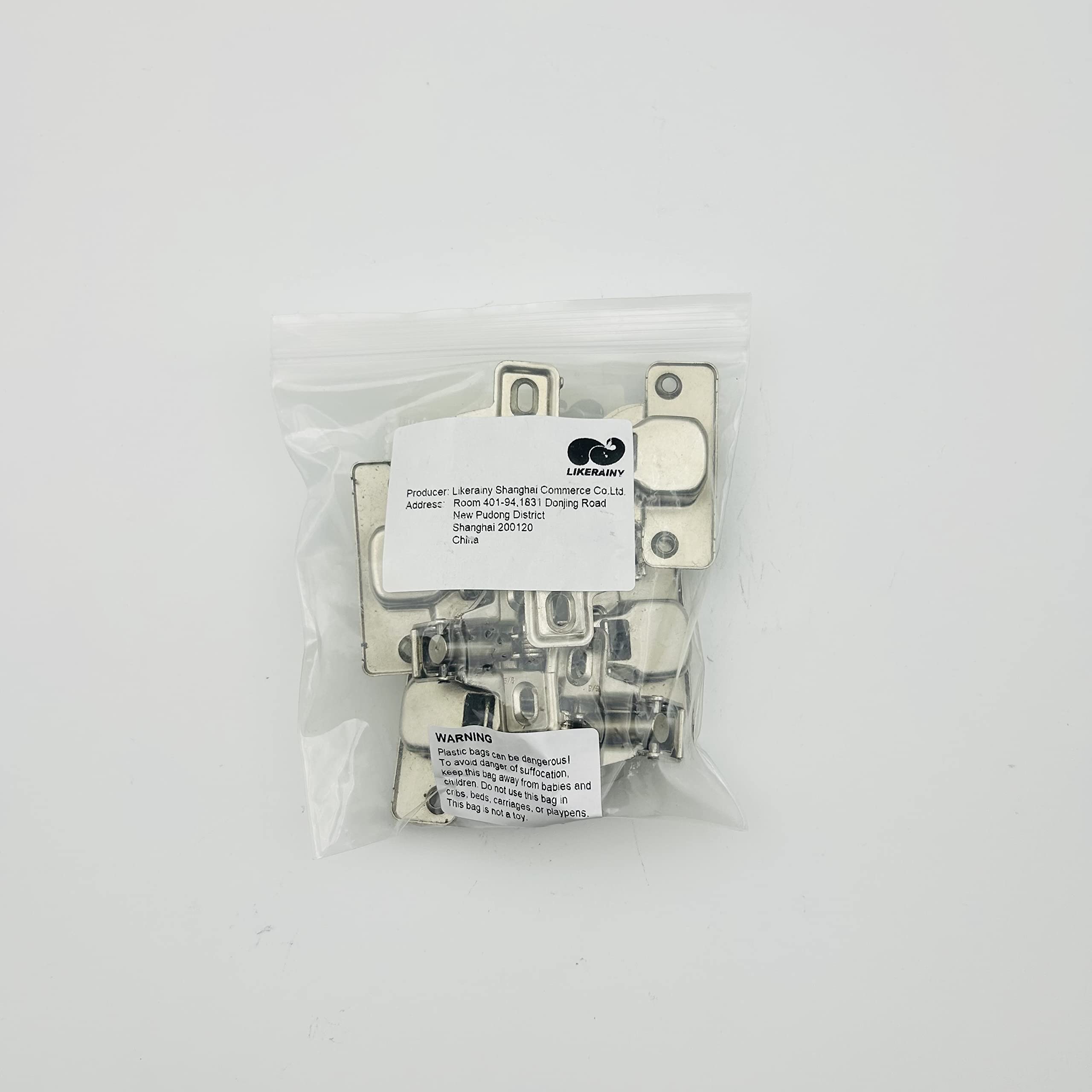

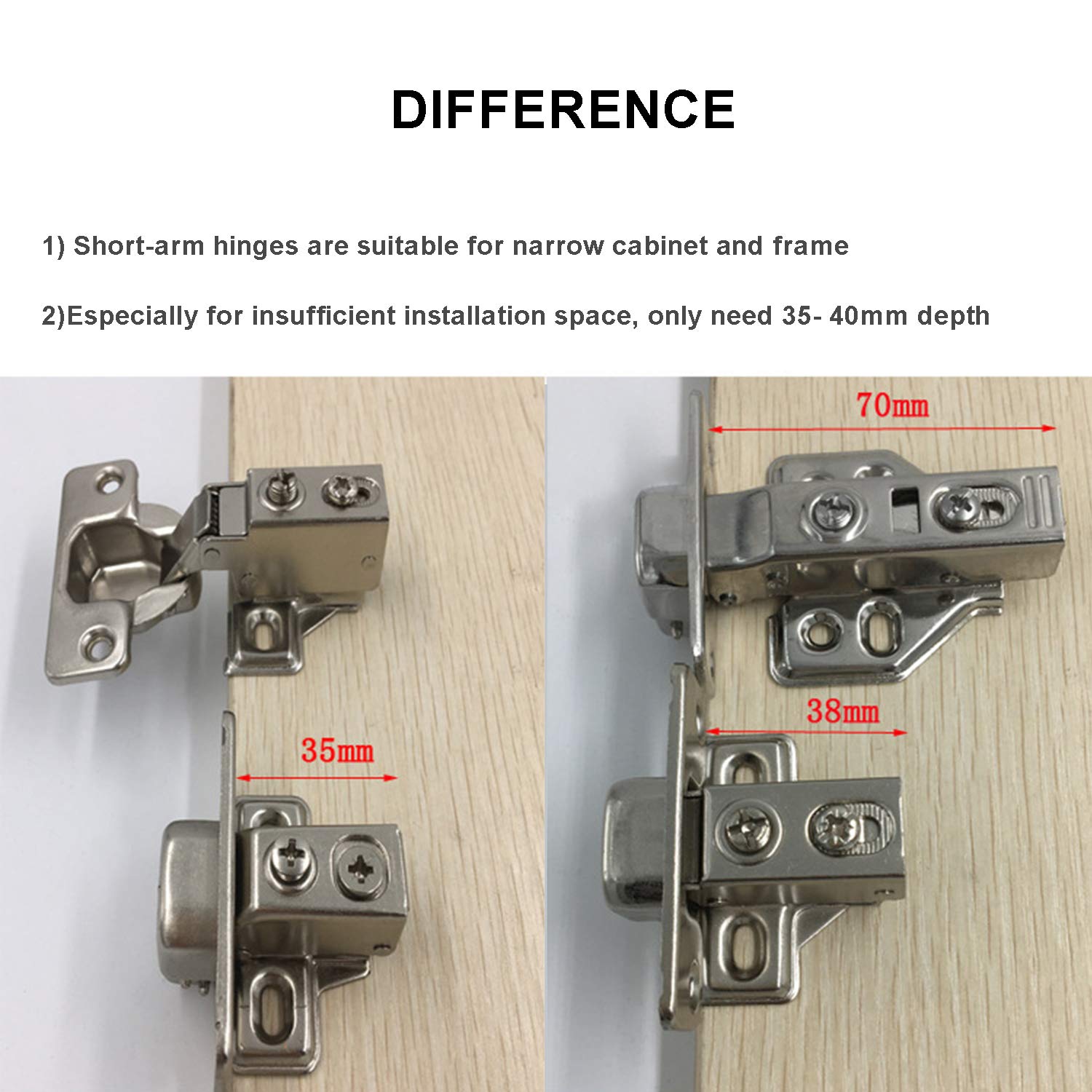

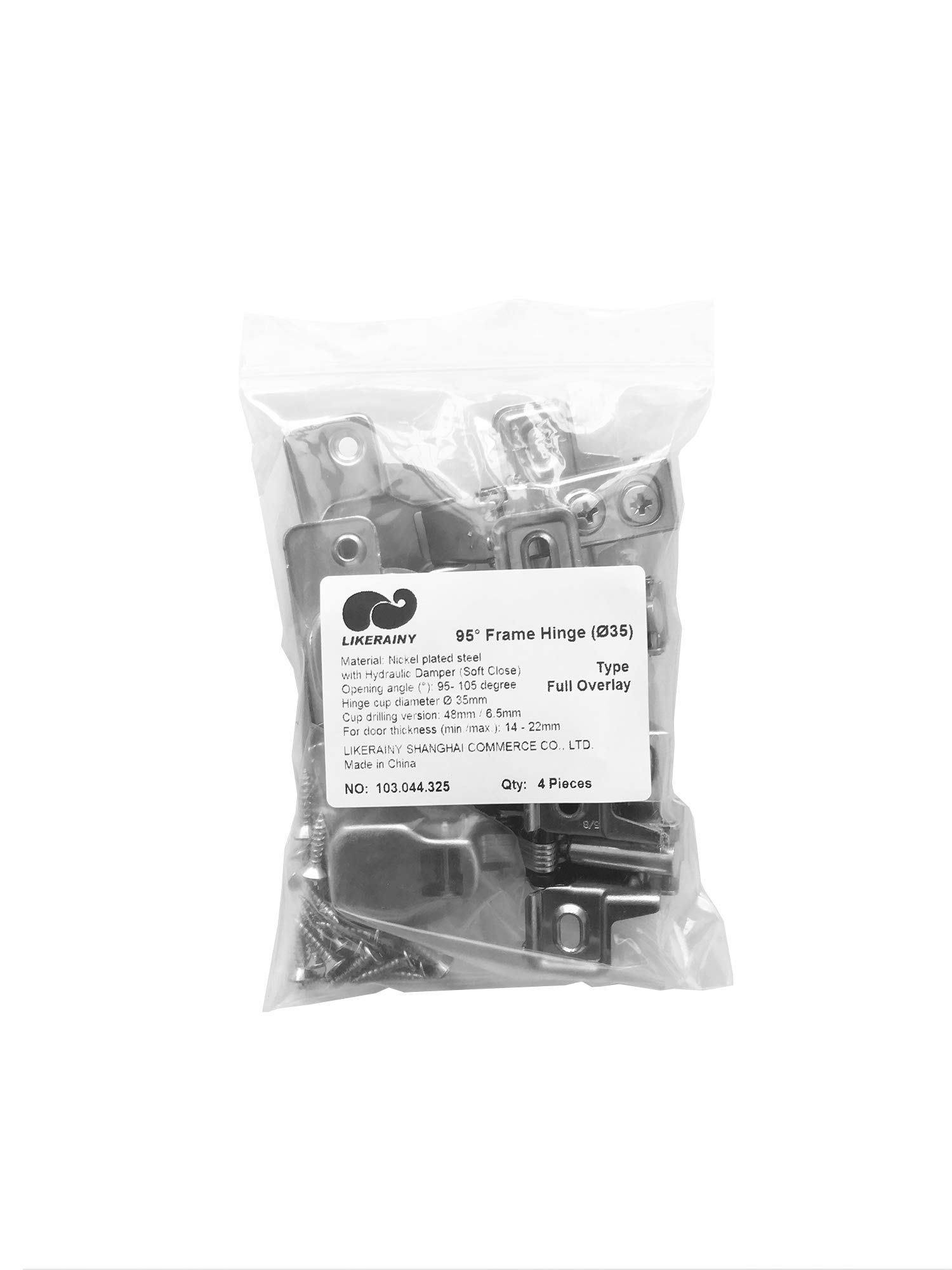

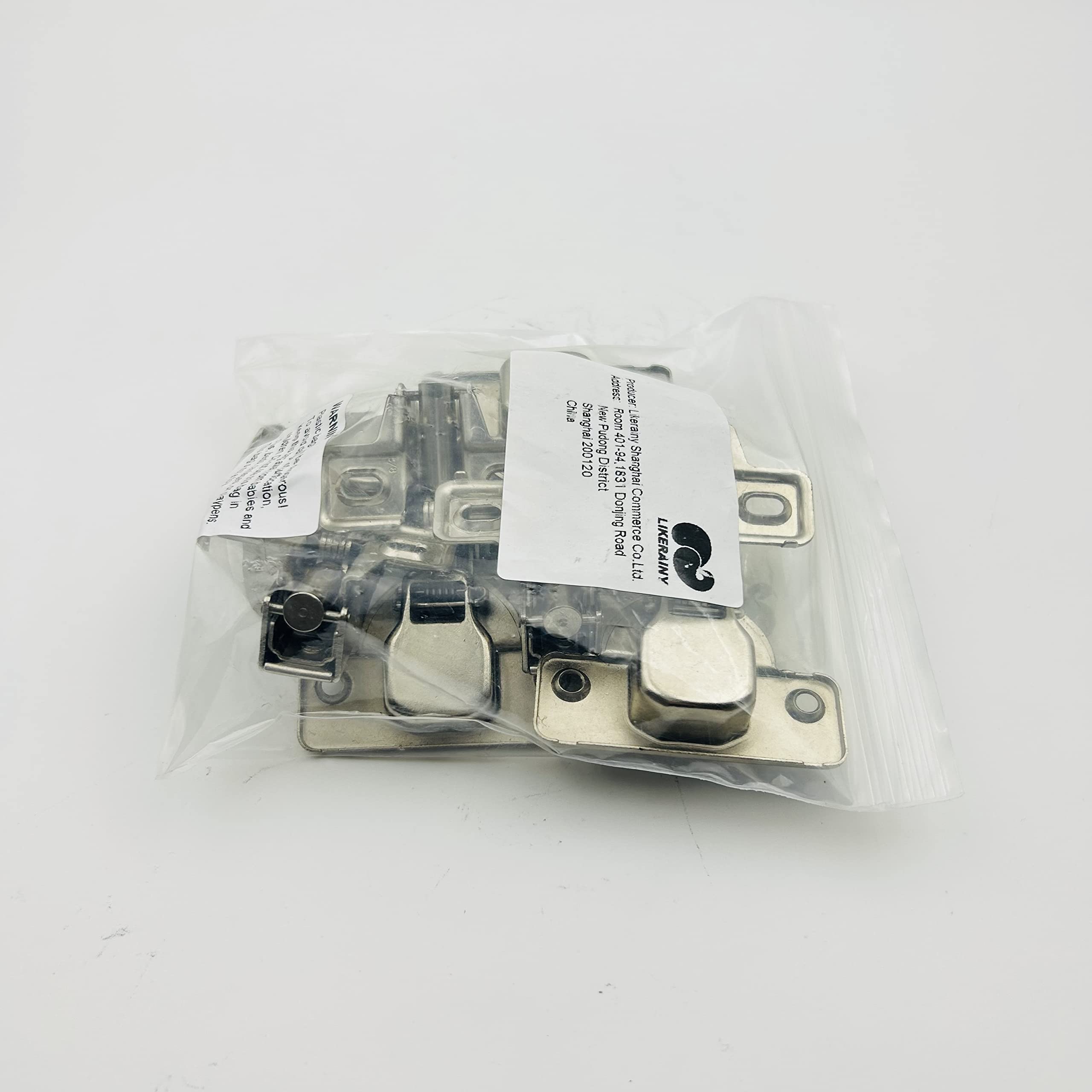

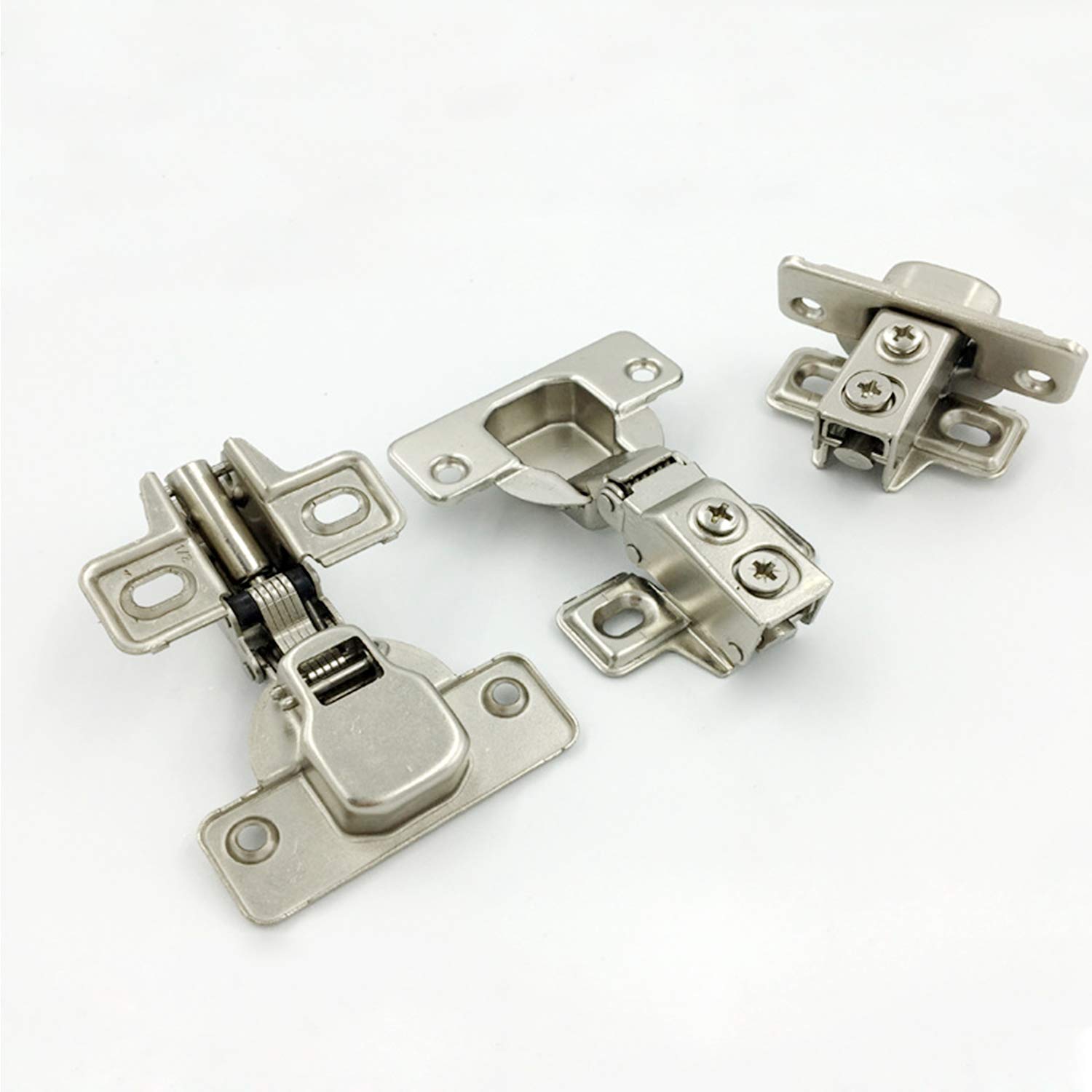

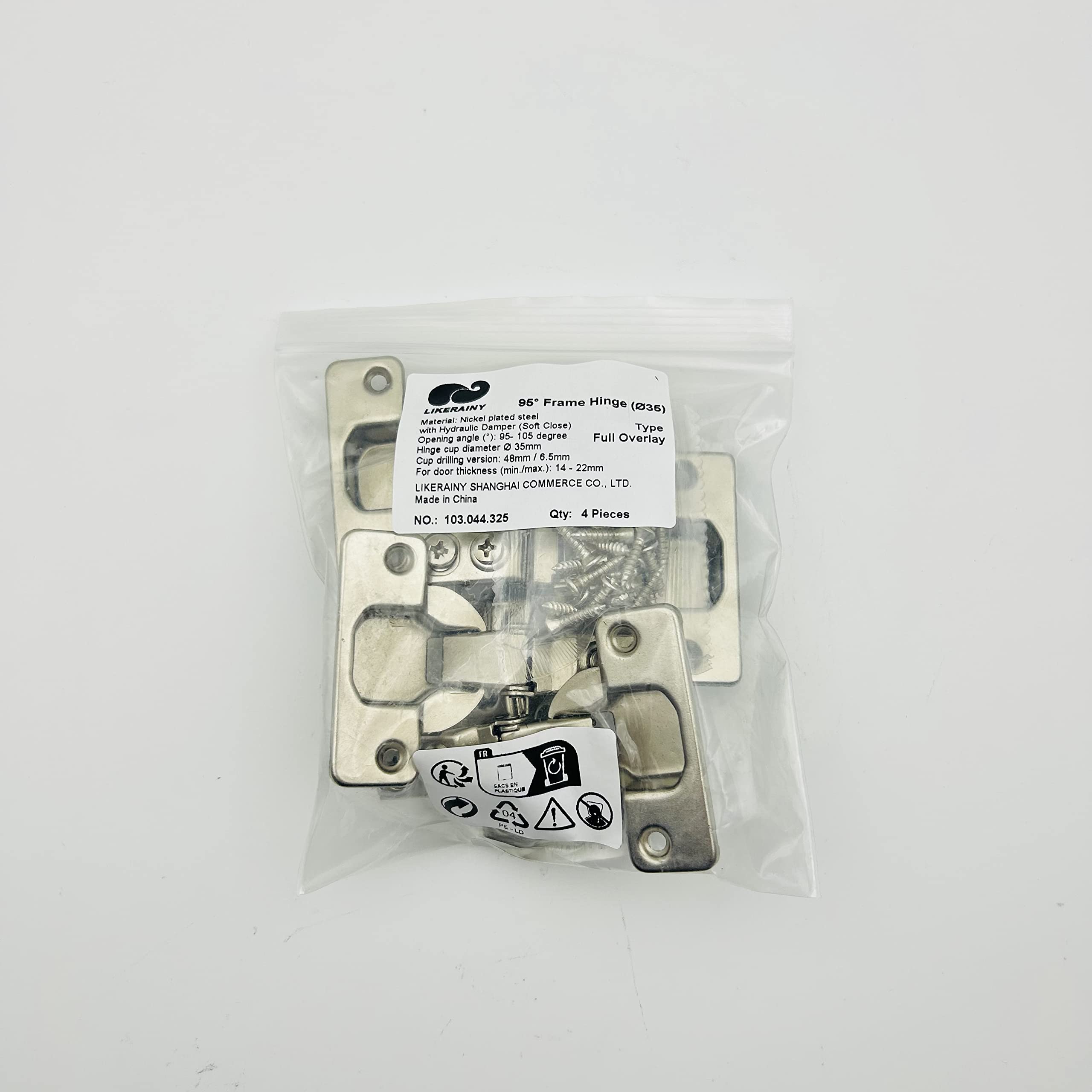

Please determine the type of your hinge application (Full Overlay, Half Overlay, and Inset) before you purchase Product Dimension -Article type: LIKERAINY face frame hinge with soft close damper -Material: Stainless steel -Opening angle (°): 95- 105 Degree -Cup drilling version: 48mm / 6.5mm -Cup diameter: Ø 35mm -Cup Depth: 13mm -DISTANCE between the two screw holes (next to the cup): 48mm -Mounting option: for screwing on -Door mounting option: Full Overlay Door Application -For side panel thickness: 14mm (min.) – 20mm (max.) -For door thickness: 14mm (min.) – 22mm (max.) -For depth of cabinet (min.): 35mm (the length of hinge carcass under closed condition) (see photo above) -Integrated overlay adjustment: +2.5 mm / -2.5 mm -Integrated depth adjustment: +2.0mm / -2.0 mm -Hinge cup/arm finish: Copper plated and Nickel plated -Cover cap for carcass: NO -Cover cap for hinge cup: NO -Fast installation: Yes Package -Ø 35mm frame hinges: 4 Pieces -with mounting screws -No mounting instruction and processing information (see photos above)
